Bed switch LF

SKU 10.05.16.X/LF Categories , ,

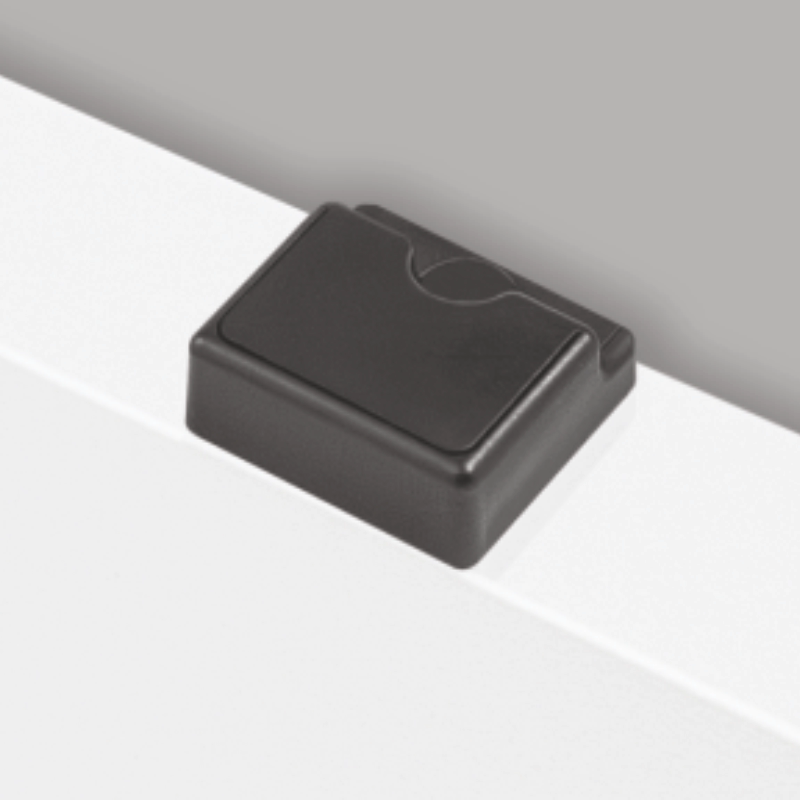

BED SWITCH LF is an electronic touch switch with a dimming function and intelligent memory of the last brightness setting. It is designed for installation around beds, headboards and bedside cabinets. The connected LED profile is controlled intuitively by touching the housing. A short touch switches the light on or off, while holding your finger on the sensor allows smooth adjustment of the light intensity.

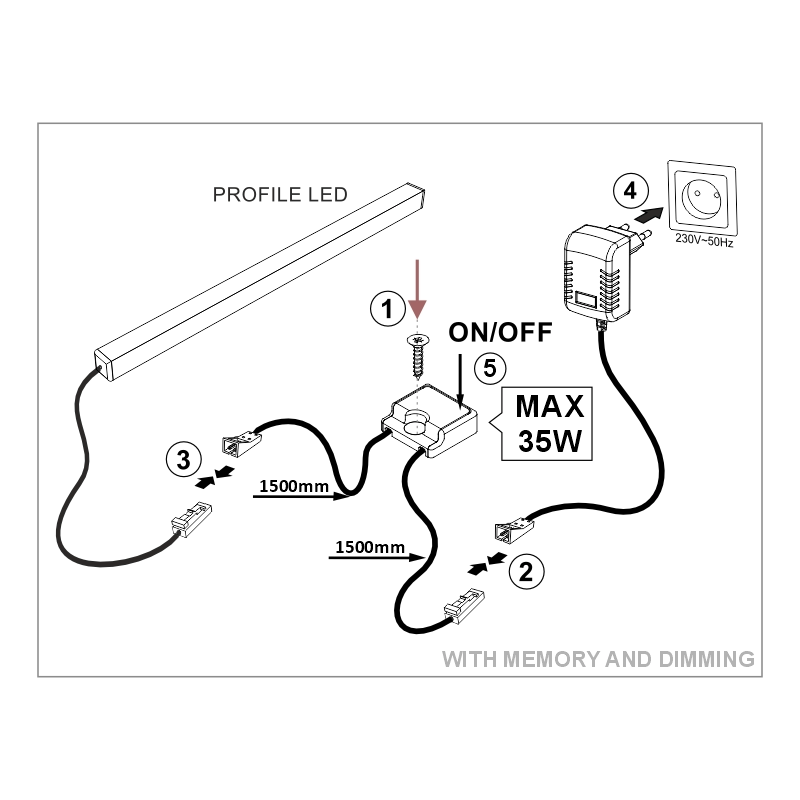

The switch is installed as a surface-mounted element directly on the furniture board. Stable fixing is ensured by a single screw passing through the dedicated opening in the housing. Once tightened, the screw is aesthetically covered with the round cap included in the set.

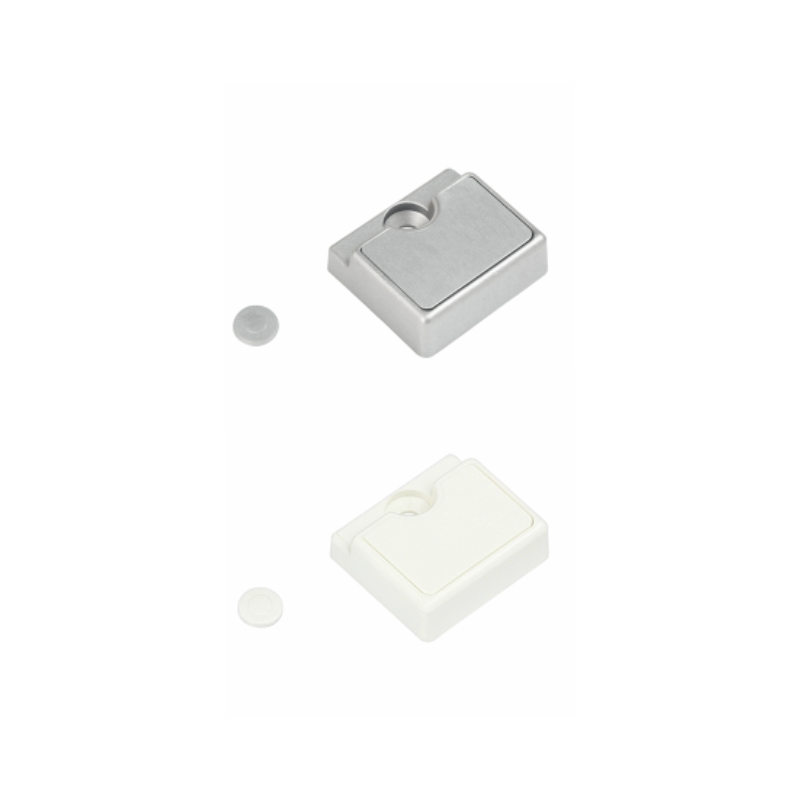

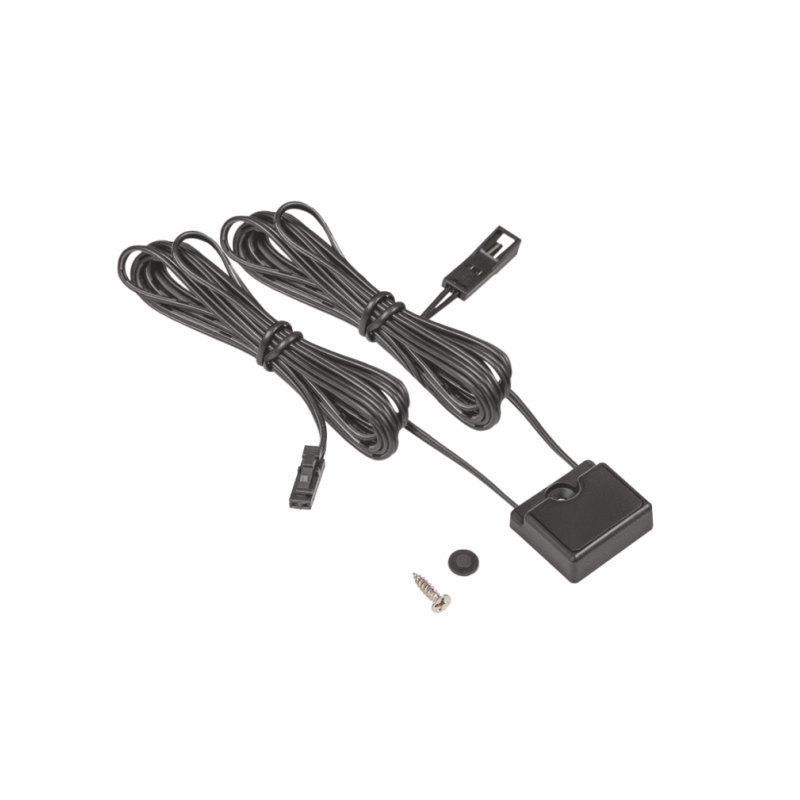

The device operates in safe low-voltage 12 V DC systems and supports current of up to 3 A, allowing LED strips with a total maximum power of up to 35 W to be powered. The switch is equipped with two factory-fitted 1.5 m installation cables with ready-made system connectors, making it easy to connect the module directly between the plug-in power supply and the light source. The device is available in universal finish options, such as white, black and aluminium, allowing the detail to be matched to the furniture style.

Additional information

Housing color

Aluminium, White, Black

Technical data

Power supply: 12 V DC, Cable: 2 m, Protection class: III, Maximum output current: 3 A

Downloads

BED SWITCH LF product data sheet
