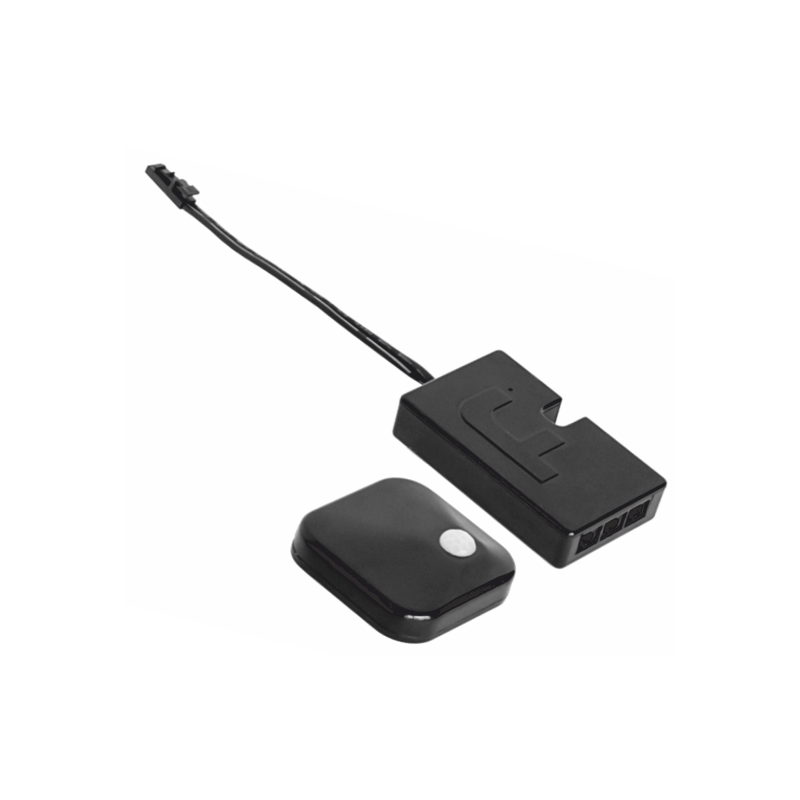

RF SENDER PIR / RF RECEIVER LED is a set for wireless control of 12 V DC LED lighting, consisting of a transmitter with a PIR motion sensor and an RF receiver. The system is designed to switch the light on and off automatically depending on motion detection.
The PIR transmitter reacts to the presence of the user and sends a radio signal to the receiver, which controls the connected lighting. The operating time after motion detection is approximately 30 seconds. Communication takes place wirelessly at an RF frequency of 433 MHz.

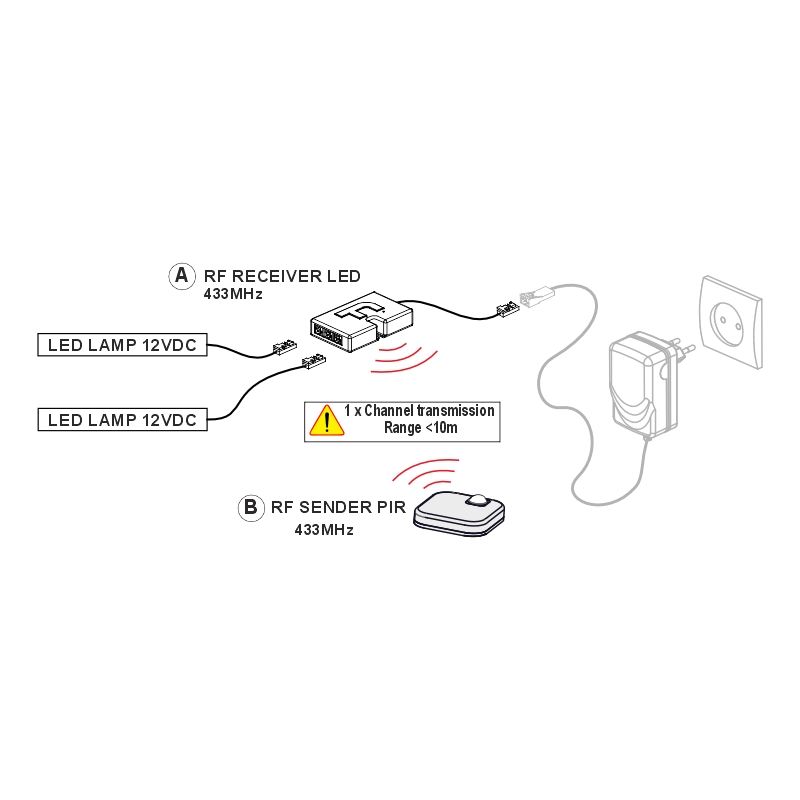

The receiver is connected to a 12 V DC LED installation and allows the lighting to be controlled without the need for additional control cables. The maximum load is 3 A.

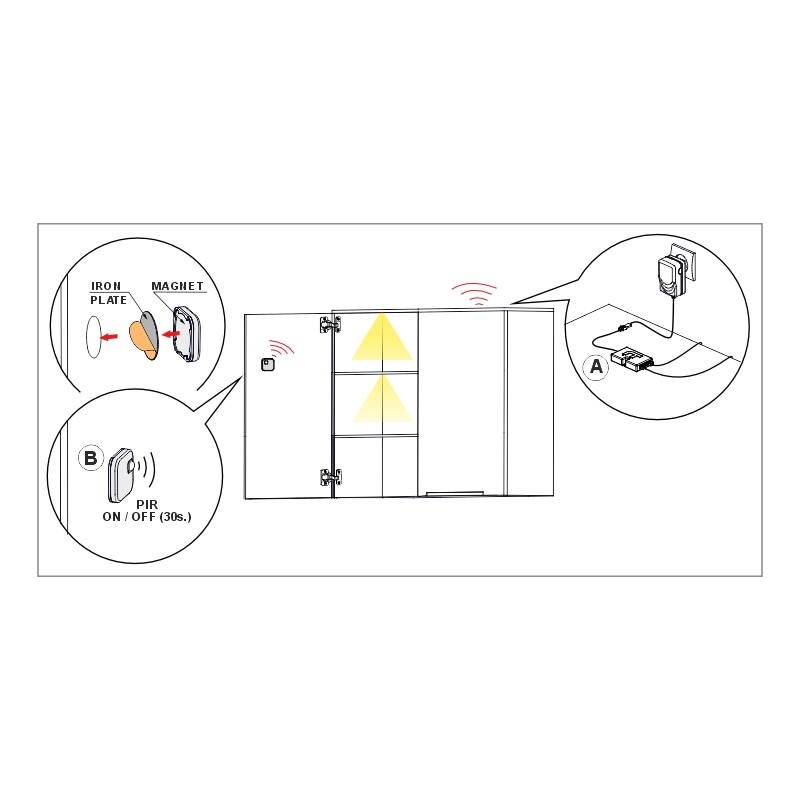

The transmitter is powered by a CR2025 3 V battery, allowing easy installation without connection to an electrical system. The set components can be installed using a magnetic plate or screws, depending on the requirements.

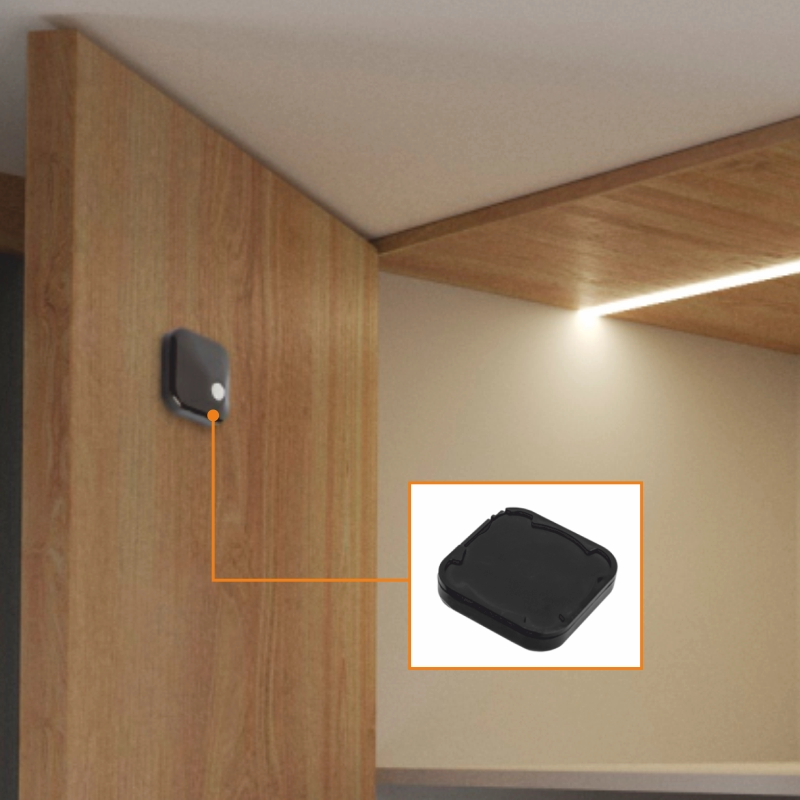

The set is suitable for furniture, wardrobes and built-in structures where automatic, touchless lighting control is required.
| Housing color | 10.04.20.X/RECEIVER: black, 10.04.20.X/PIR: white; black |
|---|---|
| Technical data | Power supply: 12 V DC, Maximum load: 3 A, Protection class: III, Transmitter power supply: CR2025 3 V battery, Operating frequency: RF 433 MHz |
