Switch for movement

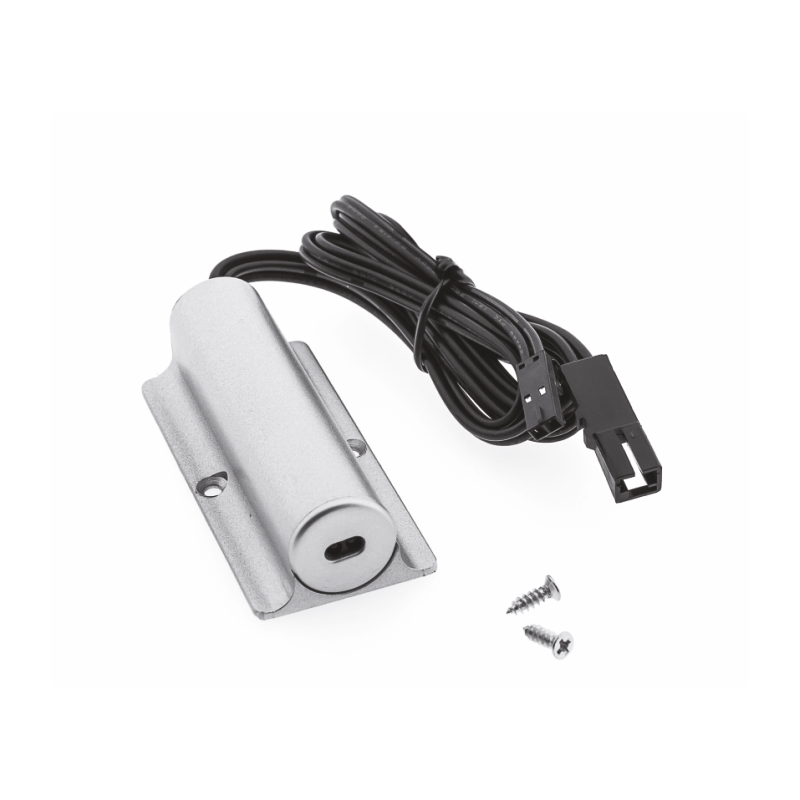

SWITCH FOR MOVEMENT is a touchless furniture switch operating as a proximity sensor, designed to control lighting systems. The device reacts to hand movement in the immediate vicinity of the sensor, allowing the light to be switched on and off alternately without physical contact with the housing surface.

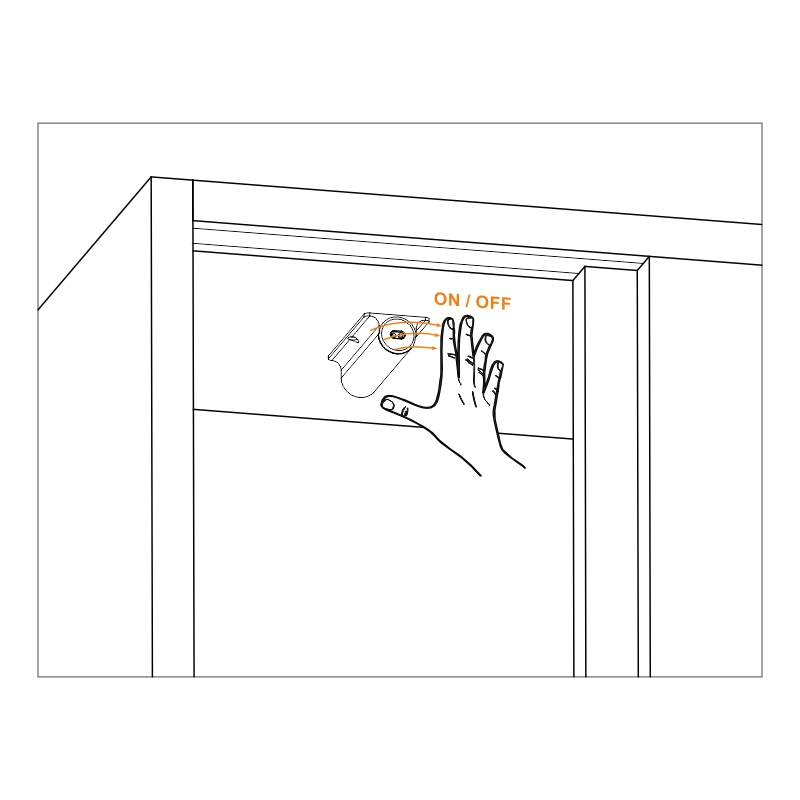

The sensor is installed inside the furniture, making it almost invisible after installation. The product meets the requirements of protection class III, making it well suited as a control element for lighting in kitchen cabinets, bathroom cabinets and wardrobes.

Installation is based on surface mounting on furniture board surfaces, with stable fixing ensured by the two included screws. They are installed in factory-made holes with a diameter of 3 mm, spaced 22 mm apart. The switch is designed to operate in circuits with safe 12 V DC voltage, and its maximum current load is 2 A. It is equipped with a 0.5 m cable finished with ready-made system connectors, making it easier to connect the sensor to the power supply and LED light sources.

Additional information

Technical data

Power supply: 12 V DC, Cable: 0.5 m, Protection class: III, Maximum output current: 2 A

Downloads

SWITCH FOR MOVEMENT product data sheet
